Product Details
Place of Origin: Anping, China
Brand Name: JQ, Orientland
Certification: ISO9001:2015,SGS
Model Number: JQWW01
Payment & Shipping Terms
Minimum Order Quantity: 50rolls
Price: USD6.9-9.9/Unit
Packaging Details: Waterproof paper, plastic film, cartons
Delivery Time: 7 to 10 days
Payment Terms: T/T, L/C
Supply Ability: 2000rolls per day
Type: |
Welded Mesh |
Material: |
Low Carbon Steel Wire |
Wire Diameter: |
1.0mm |
Hole Size: |
1" |
Hole Shape: |
Square |
Width: |
1.0m |
Length: |
25m |
Packing: |
Waterproof Paper |
Surface Treatment: |
GI Or Electric Galvanized |
Application: |
Construction Wire Mesh, Building Plastering |
Type: |
Welded Mesh |
Material: |
Low Carbon Steel Wire |
Wire Diameter: |
1.0mm |
Hole Size: |
1" |
Hole Shape: |
Square |
Width: |
1.0m |
Length: |
25m |
Packing: |
Waterproof Paper |
Surface Treatment: |
GI Or Electric Galvanized |
Application: |
Construction Wire Mesh, Building Plastering |

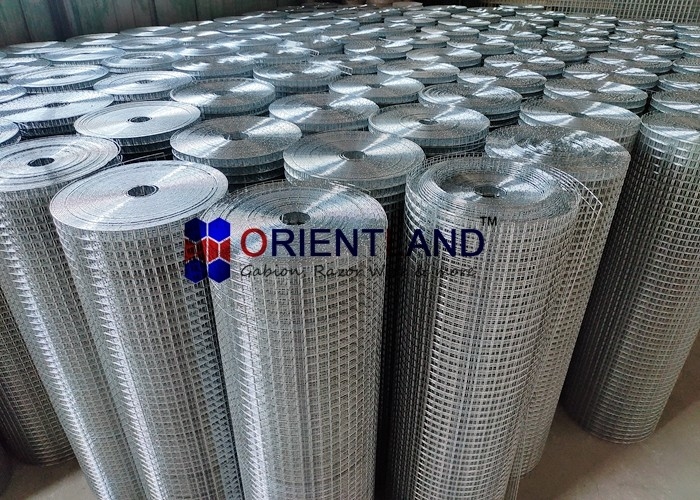

GI Electric Galvanized Welded Wire Mesh 1" Hole Size
Galvanized Welded Wire Mesh
Material: Elec-galvanized steel wire, hot-dip galvanized steel wire,
Surface treatment: Elec-galvanized, hot-dip galvanized.
Technology: the Galvanized Welded Wire Mesh can divide into two kinds: galvanized after welding and welded after galvanizing.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant.
| Wire Diameter(BWG) | Mesh Opening | Width | |
| inch | mm | ||
| 22, 23, 24 | 1/4"x1/4" | 6.4x6.4mm | 0.5m-2.0m |
| 19, 20, 21, 22 | 3/8"x3/8" | 10.6x10.6mm | |
| 16, 17, 18, 19, 20, 21, 22, 23 | 1/2"x1/2" | 12.7x12.7mm | |
| 18, 19, 20, 21 | 5/8"x5/8" | 16x16mm | |
| 16, 17, 18, 19, 20, 21 | 3/4"x3/4" | 19x19mm | |
| 16, 17, 18, 19, 20, 21 | 1"x1/2" | 25.4x12.7mm | |
| 14, 15, 16, 17, 18, 19, | 1-1/2"x1-1/2" | 38x38mm | |
| 14, 15, 16 | 1"x2" | 25.4x50.8mm | |
| 12, 13, 14, 15, 16 | 2"x2" | 50.8x50.8mm | |
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
