Product Details
Place of Origin: Anping, China
Brand Name: JQ, Orientland
Certification: ISO9001:2015,SGS
Model Number: JQBBW01
Payment & Shipping Terms
Minimum Order Quantity: 50rolls
Price: USD3.9-6.9/roll
Packaging Details: Waterpoof paper + plastic woven bag
Delivery Time: 7 to 10 days
Payment Terms: T/T, L/C
Supply Ability: 2000rolls per day
Material: |
Hot Dipped Galvanized Wire |
Line Wire Diameter: |
2.2mm |
Barb Wire Diameter: |
2.0mm |
Barb Spacing: |
12cm |
Length: |
250m |
Sample: |
Free |
Material: |
Hot Dipped Galvanized Wire |
Line Wire Diameter: |
2.2mm |
Barb Wire Diameter: |
2.0mm |
Barb Spacing: |
12cm |
Length: |
250m |
Sample: |
Free |

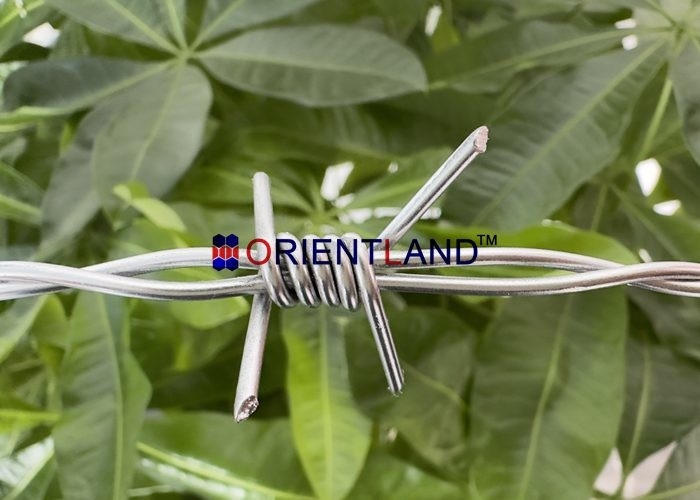

2.2mm Hot Dipped Galvanized Barbed Wire 250m
Products Introduction:
Barbed Wire is one of the most easy installation and cheapest security protection products. Barbed wire are applied to various security fencing and barriers. It can be laid directly in rows on the ground, installed on the top of the fence. To prevent corrosion, barbed wire has a zinc coating or PVC coating. The barbed wire are consists by barb wire and line wire. The line wire diameter is larger. The line wire can have one strand or two strand wires. The barb wires are braided with a system to constant torsion around line wire. One barb wire forms two spikes and two pieces of wire-four spikes. The sharp spikes are protective elements of the barbed wire.
Material: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
| Barbed Wire Specification | ||||
| Material | Wire Diameter | Barb Distance (cm) | Barb Length (cm) | |
|
Electric Galvanized Wire, Stainless Steel Wire, Hight Tensile Steel Wire |
3.2x2.6 | 7.5-15 | 1.5-3 | |
| 2.6x2.6 | ||||
| 2.6x2.2 | ||||
| 2.2x2.0 | ||||
| 2.0x1.8 | ||||
| 1.8x1.6 | ||||
| 1.6x1.6 | ||||
| PVC coated Wire | Before CoatingAfter Coating | 7.5-15 | 1.5-3 | |
| 1.0-3.5mm | 1.4-4.0mm | |||
| BWG11-20 | BWG8-17 | |||
| SWG11-20 | SWG8-17 | |||
| PVC coating thickness: 0.4mm-0.6mm; different colors or length can be customized. | ||||
Barbed Wire Application:
Brbed wire is widely used in militarily field, prisons, detention houses, government buildings and other national security facilities. Used in Agriculture, animal husbandry, dwelling house, plantation, fencing, etc. Or as accessories for woven wire fence to form a fencing system or security system.
Packing of the Barbed Wire
