Product Details
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORGWB035
Payment & Shipping Terms
Minimum Order Quantity: 2000 sqm
Price: USD 1.02-1.58 per sqm
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Type: |
Woven Mesh Gabion Baskets |
Material: |
Hot Dipped Galvanized Wire |
Hole Shape: |
Hexagonal |
Mesh Wire Diameter: |
2.7mm |
Selvage Wire: |
3.4mm |
Lacing Wire: |
2.2mm |
Aperture: |
100×120mm |
Tolerance: |
+16%, -4% |
Application: |
Flood Control Retaining Wall, River Bank Vation, Slope Protection |
Box Size: |
2m×1m×1m |
Sample: |
Available And Free |
Products Name: |
Costless Double Twisted Hexagonal Shape Woven Mesh Gabion Baskets |
Type: |
Woven Mesh Gabion Baskets |
Material: |
Hot Dipped Galvanized Wire |
Hole Shape: |
Hexagonal |
Mesh Wire Diameter: |
2.7mm |
Selvage Wire: |
3.4mm |
Lacing Wire: |
2.2mm |
Aperture: |
100×120mm |
Tolerance: |
+16%, -4% |
Application: |
Flood Control Retaining Wall, River Bank Vation, Slope Protection |
Box Size: |
2m×1m×1m |
Sample: |
Available And Free |
Products Name: |
Costless Double Twisted Hexagonal Shape Woven Mesh Gabion Baskets |

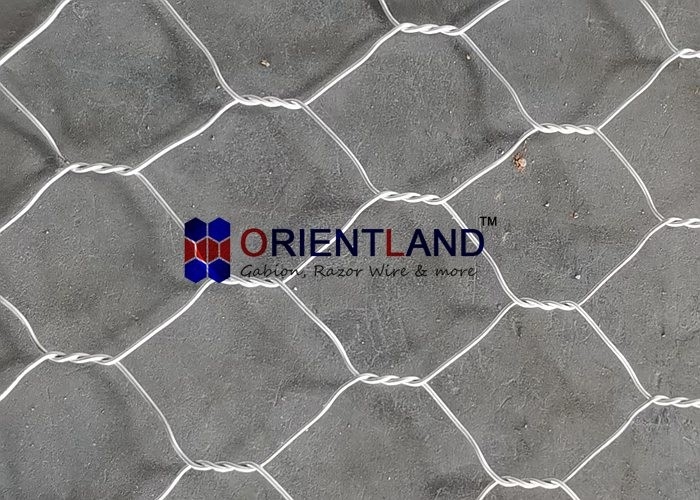

Costless Double Twisted Hexagonal Shape Woven Mesh Gabion Baskets
Products Description:
Woven Mesh Gabion Baskets or Gabion Cages are purpose designed stone filled wire mesh baskets or cages for use as retaining structures. They are also sometimes referred to as just stone filled bastions, stone cages or baskets. Gabion baskets are an economical, environmental and established solution for structural retaining walls and coastal defences.
Gabion Baskets are galvanized steel, double twisted, woven wire mesh filled with stone and used for various applications including, but not limited to, retaining walls, slope paving, out fall structures, weirs, drop structures and stream bank protection. Orientland double twisted hexagonal mesh gabion baskets are manufactured in accordance with and meet the guidelines of ASTMA975-97. The stone fill material used for filling the gabion units is clean, hard stone with pieces ranging from 4 – 8 inches on the greatest dimension.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
|
80×100mm 100×120mm |
+16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 | |||
| 2 | 1 | 0.5 | 0/1 | |||
| 2 | 1 | 1 | 0/1 | |||
| 3 | 1 | 0.5 | 0/2 | |||
| 3 | 1 | 1 | 0/2 | |||
| 4 | 1 | 1 | 0/3 |
Gabion box application:
Gabion Box:
