Product Details
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORDWF001
Payment & Shipping Terms
Minimum Order Quantity: 100units
Price: Negotiable
Packaging Details: Iron Pallet, Wooden Pallet
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 units per week
Type: |
Fencing, Trellis & Gates |
Surface Treatment: |
PVC Powder Coated, Hot Dipped Galvanized |
PVC Coated Color: |
Black, Green |
Wire Diameter: |
6mm |
Hole Size: |
50×200mm |
Height: |
630-2500mm |
Width: |
2500mm |
Post: |
H Post, Square Post |
Application: |
Fence Mesh, Prison Mesh Fence, Residential Fence |
Type: |
Fencing, Trellis & Gates |
Surface Treatment: |
PVC Powder Coated, Hot Dipped Galvanized |
PVC Coated Color: |
Black, Green |
Wire Diameter: |
6mm |
Hole Size: |
50×200mm |
Height: |
630-2500mm |
Width: |
2500mm |
Post: |
H Post, Square Post |
Application: |
Fence Mesh, Prison Mesh Fence, Residential Fence |

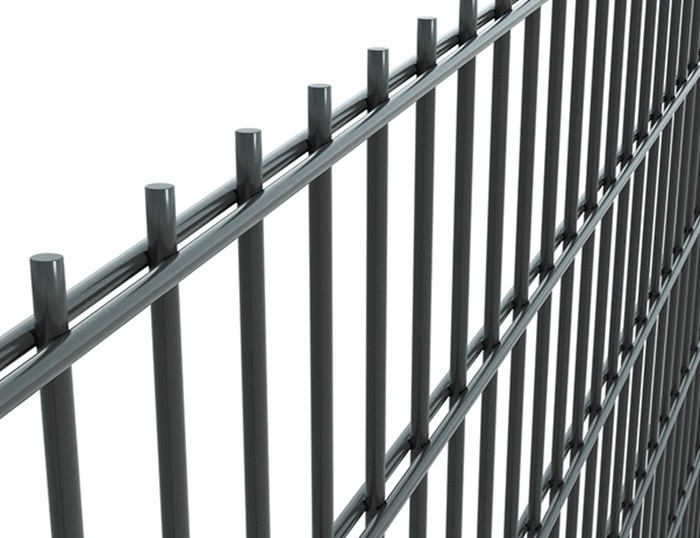

656 Double Wire Fence Twin Wire Fence
Products Description:
Double wire fence, known as double horizontal wire fence, 2d panel fence, or twin wire fence. Each welded point is welded
with one vertical and two horizontal wires; compared with ordinary welded fence panels, double wire fence has higher
strength and can withstand larger impacts and high winds.
Double wire fence is made of high quality low carbon steel wire, the surface treatment is hot dip galvanized, powder coating
or PVC coating, which can make double wire fence have a longer service life. The most common styles include 656 double
wire fence and 868 double wire fence, 656 means horizontal direction is two 6mm thick wire, vertical direction is one 5mm
wire.
| Height * Width (mm) | Mesh Size(mm) | Wire Diameter(mm) | Post Type(mm) | Post Height |
| 630*2500 |
50*200 |
6/5/6 6/6/6 8/6/8 |
Square Post 40*60 40*80 60*60 60*80
H Post 55*100 40*70
Wall Thickness 1.5-2.0 |
Denpend on the height of the mesh panel. |
| 830*2500 | ||||
| 1030*2500 | ||||
| 1230*2500 | ||||
| 1430*2500 | ||||
| 1630*2500 | ||||
| 1830*2500 | ||||
| 2030*2500 | ||||
| 2230*2500 | ||||
| 2430*2500 | ||||
|
Surface Treatment: Hot dipped galvanzied after welded Powder painted after galvanized wire welding PVC coated after galvanized wire welding |
||||
| All special size can be customized. | ||||
According to the thickness of the wire diameter, including 656 double wire fence and 868 double wire fence,other
specifications can be customized.
● 868 means horizontal direction is two 6mm thick wire, vertical direction is one 5mm wire.
According to the number of horizontal wire, it can be designed as two horizontal wires on each horizontal line, or two
horizontal wire on every three horizontal lines.
● Doubled every horizontal wire provides a stronger structure for the fence.
● Double wire on every three horizontal lines can save cost and also make the fence stronger compared to a normal
fence.
According to the top style, it can be divided into flat-topped double wire fence, or arch-topped double wire fence.
● Flat topped twin wire fence is the most widely used type of double wire fence with low cost.
● Arch topped 2d panel fence appearance is more beautiful, ideal for residential fence, park fence, etc.
Installation Method and Accessories of double wire fence
Different installation methods can be chosen for the double wire fence, and with different accessories.
Packing and Delivery
