Product Details
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORGWB017
Payment & Shipping Terms
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Type: |
Gabion Wall Basket |
Material: |
Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire |
Hole Shape: |
Hexagonal |
Wire Gauge: |
2.0/2.7/3.0/4.0mm |
Aperture: |
80×100mm, 100×120mm, 120×140mm |
Application: |
Flood Control Retaining Wall, River Bank Vation, Slope Protection |
Box Size: |
2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m |
Sample: |
Available And Free |
Type: |
Gabion Wall Basket |
Material: |
Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire |
Hole Shape: |
Hexagonal |
Wire Gauge: |
2.0/2.7/3.0/4.0mm |
Aperture: |
80×100mm, 100×120mm, 120×140mm |
Application: |
Flood Control Retaining Wall, River Bank Vation, Slope Protection |
Box Size: |
2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m |
Sample: |
Available And Free |
Gabion Basket Check Dam Slope Stabilization Gabion Prevent Erosion Ecological Control
Products Description:

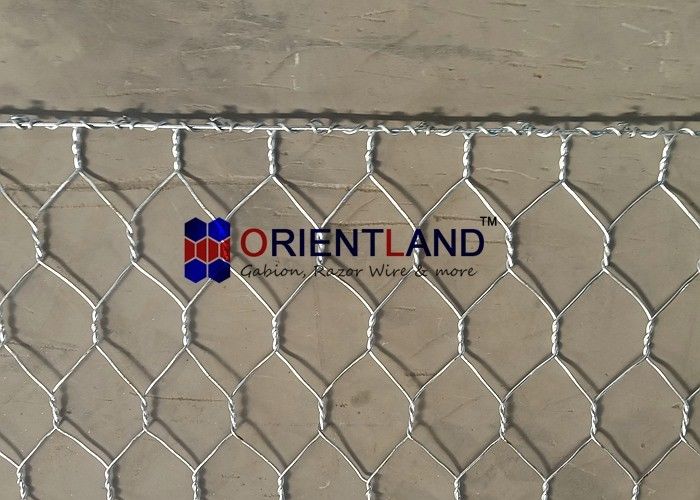

Gabion Baskets are galvanized steel, double twisted, woven wire mesh filled with stone and used for various applications including, but not limited to, retaining walls, slope stabilization, check dam, drop structures and river bank protection.
Orientland double twisted hexagonal mesh gabion baskets are manufactured in accordance with and meet the guidelines of ASTMA975-97. The stone fill material used for filling the gabion units is clean, hard stone with pieces ranging from 4 – 8 inches on the greatest dimension.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
|
80×100mm 100×120mm |
+16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 | |||
| 2 | 1 | 0.5 | 0/1 | |||
| 2 | 1 | 1 | 0/1 | |||
| 3 | 1 | 0.5 | 0/2 | |||
| 3 | 1 | 1 | 0/2 | |||
| 4 | 1 | 1 | 0/3 |
Gabion box application:
Gabion Box:
