Product Details
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORGWB029
Payment & Shipping Terms
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Type: |
Gabion Wall Basket |
Material: |
Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire |
Hole Shape: |
Hexagonal |
Wire Gauge: |
2.0/2.7/3.0/4.0mm |
Aperture: |
80×100mm, 100×120mm, 120×140mm |
Application: |
Flood Control Retaining Wall, River Bank Vation, Slope Protection |
Box Size: |
2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m |
Sample: |
Available And Free |
Type: |
Gabion Wall Basket |
Material: |
Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire |
Hole Shape: |
Hexagonal |
Wire Gauge: |
2.0/2.7/3.0/4.0mm |
Aperture: |
80×100mm, 100×120mm, 120×140mm |
Application: |
Flood Control Retaining Wall, River Bank Vation, Slope Protection |
Box Size: |
2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m |
Sample: |
Available And Free |

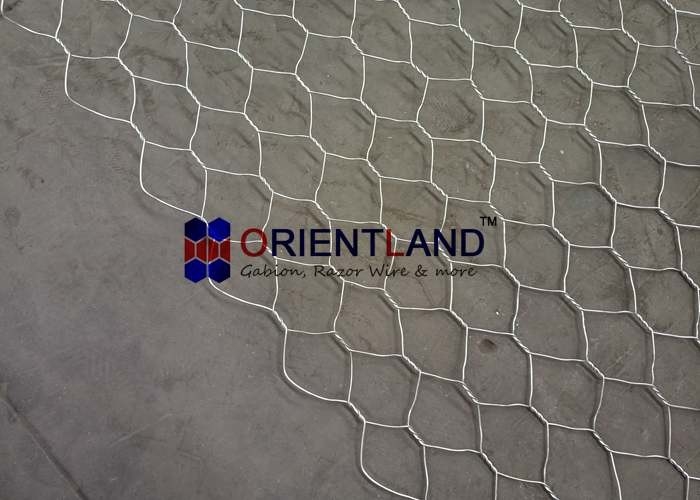

Double Twisted Hexagonal Woven Mesh Gabions es Soil Retention Gabion Baskets
Products Description:
Double Twisted Hexagonal Mesh Gabions & es have been used for channel linings, river training, soil retention, slope stabilization, and other applications successfully throughout the world for over 100 years. Double Twisted Mesh Gabions & es offer many advantages over other types of construction materials. Some of the advantages offered by double twisted mesh gabions & es are flexibility, durability, strength, permeability, ecology, reliability, longevity, low cost, and an aesthetic appearance.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
|
80×100mm 100×120mm |
+16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 | |||
| 2 | 1 | 0.5 | 0/1 | |||
| 2 | 1 | 1 | 0/1 | |||
| 3 | 1 | 0.5 | 0/2 | |||
| 3 | 1 | 1 | 0/2 | |||
| 4 | 1 | 1 | 0/3 |
Manufactured in Orientland, wovenmesh options of 80x100x2.70mm, and 60x80x2.20mm aperture. With salvage wire of 3.40mm diameter, supplied with 2.20mm binding wire. We supply these materials in standard sized Gabion boxes or mesh rolls. Class A Galvanised, Galfan or with Grey PVC coating.
Gabion box application:
