Product Details
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWGP011
Payment & Shipping Terms
Minimum Order Quantity: 200units
Price: Negotiable
Packaging Details: Carton, Pallet
Delivery Time: 15-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4800units per month
Type: |
Welded Mesh |
Material: |
Hot-Dipped Galvanized Wire, Low-Carbon Iron Wire |
Hole Shape: |
Square, Rectangular |
Wire Gauge: |
4.0mm,5mm Or According To Specific Require |
Application: |
Gabions, Fence, Retaining Wall, Shore Protection, Garden |
Aperture: |
50×50mm, 75×75mm, 50×100mm |
Gabion Box Size: |
1m×0.3m×0.3m, 1m×0.3m×0.5m, 1m×0.3m×0.8m, 1m×0.3m×1m, 1.5m×0.3m×1m, 2m×0.3m×1m |
Packing: |
Carton, Iron Pallet, Wooden Pallet |
Sample: |
Free |
Type: |
Welded Mesh |
Material: |
Hot-Dipped Galvanized Wire, Low-Carbon Iron Wire |
Hole Shape: |
Square, Rectangular |
Wire Gauge: |
4.0mm,5mm Or According To Specific Require |
Application: |
Gabions, Fence, Retaining Wall, Shore Protection, Garden |
Aperture: |
50×50mm, 75×75mm, 50×100mm |
Gabion Box Size: |
1m×0.3m×0.3m, 1m×0.3m×0.5m, 1m×0.3m×0.8m, 1m×0.3m×1m, 1.5m×0.3m×1m, 2m×0.3m×1m |
Packing: |
Carton, Iron Pallet, Wooden Pallet |
Sample: |
Free |

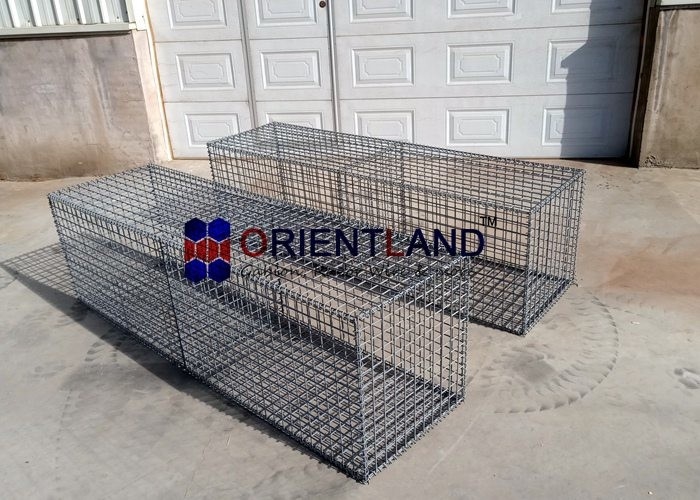

Welded Wire Erosion Control Baskets Gabion Fence Residential Landscaping Gabion Wall
Gabions are a simple, quick and convenient way to build strong, flexible, permeable, and economical rock-filled structures that work well in a wide variety of situations.
The Gabion mesh sheet normally welded by Hot Dipped Galvanized Wire. For more corrosion resistance, after the mesh is welded, it is dipped in a bath of hot zinc, giving it excellent Galvanized After Weld (GAW) protection against rust and corrosion. For extremely harsh and more demanding environmental conditions, gabion mesh is also available with a thick and durable coating of PVC. This double protection assures a longer lifetime.
| Specification of Welded Gabion Basket | ||||
|---|---|---|---|---|
| Material | Mesh Wire dia. | Helical Wire dia. | Aperture | Dimension |
|
Hot dipped galvanized wire |
4.0mm |
3.0mm |
5×5cm 5×10cm, 7.62×7.62cm, 10×10cm |
1×0.3×0.3m, |
| 1×0.3×0.5m, | ||||
| 1×0.3×0.8m, | ||||
| 1×0.3×1.0m | ||||
| 1.5×0.3×1.0m | ||||
| 2.0×0.3×1.0m | ||||
| All the specification could be customized | ||||
Aperture of the Welded Gabion
Helical Wire
Gabion wire mesh is available in pre-cut panels which are used to make gabion baskets.
Versatile gabion baskets can be used for channel linings, architectural and landscaping features, soil stabilization, sea walls, breakwaters, bank revetments, monolithic gabion retaining walls, storm water filters, weirs and many other commercial and residential applications.
The design potentials of gabions are limitless. Placement of baskets as well as the texture and color of the stones used for fill are variables you can manipulate to build creative designs.
Welded wire gabion baskets are ideal for residential landscaping projects.
The pre-assembled welded wire gabion baskets are shipped flat. Spirals and struts required to complete assembly are also provided and included in the price. Baskets are easily and quickly put together. Once fully assembled at the project site and put in place, the baskets are filled with rocks.
