Product Details
Place of Origin: Hebei, China
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWGP045
Payment & Shipping Terms
Minimum Order Quantity: 100units
Price: USD 43.5-62.3 per piece
Packaging Details: Carton, Pallet
Delivery Time: 15-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4800units per month
Type: |
Welded Mesh Gabions |
Material: |
Hot-Dipped Galvanized Wire |
Hole Shape: |
Square |
Wire Gauge: |
4.7mm |
Aperture: |
50.8×50.8mm |
PVC Painted Color: |
Gray, Dark Green, Other Color Can Be Customized |
Application: |
Outdoor Decorations, Garden Landscaping |
Gabion Box Size: |
2m×1m×1m |
Packing: |
Iron Pallet, Wooden Pallet |
Surface Treatment: |
Hot-Dipped Galvanized, PVC Painted |
Sample: |
Free |
Product Name: |
Galvanised BSEN ISO 10244-2 Weldmesh Gabions With Helical Binders |
Type: |
Welded Mesh Gabions |
Material: |
Hot-Dipped Galvanized Wire |
Hole Shape: |
Square |
Wire Gauge: |
4.7mm |
Aperture: |
50.8×50.8mm |
PVC Painted Color: |
Gray, Dark Green, Other Color Can Be Customized |
Application: |
Outdoor Decorations, Garden Landscaping |
Gabion Box Size: |
2m×1m×1m |
Packing: |
Iron Pallet, Wooden Pallet |
Surface Treatment: |
Hot-Dipped Galvanized, PVC Painted |
Sample: |
Free |
Product Name: |
Galvanised BSEN ISO 10244-2 Weldmesh Gabions With Helical Binders |
Galvanised BSEN ISO 10244-2 Weldmesh Gabions with Helical Binders
Product Introduction:
Welded gabions provide a robust and aesthetically pleasing solution for a range of retaining structures and erosion protection
applications, where the gabions are required to be a feature as well as a practical solution.
The individual wires are machine welded at each intersection to form a robust panel. The units are formed by hinging each panel together to form a box. Our welded gabions are supplied flat packed to site. Individual units are then constructed using either lacing wire, helical joints wire.
Once the units are built and placed they can be filled with the specified stone and a variety of facing materials to provide an aesthetically pleasing feature to the project.
Helicals binders are now available to coincide with not only the structural sense of the gabions but also making the overall design more aesthetically pleasing
You can choose from galvanised or PVC coated (plastic coated ) wire in 3mm, 4mm, 5mm diameter. The galvanised units are coated to BSEN ISO 10244-2 and the plastic coated/PVC coated version offers even greater corrosion resistance with an impressive design life of up to 120 years – even in harsh environment.
| Specification of Welded Gabion Basket | ||||
|---|---|---|---|---|
| Material | Mesh Wire dia. | Helical Wire dia. | Aperture | Dimension |
|
Hot dipped galvanized wire, |
2.5mm 3.0mm 4.0mm |
3.0mm |
5×5cm 5×10cm, 7.62×7.62cm, 10×10cm |
0.5×0.5×0.5m, |
| 1.0×0.5×0.5m, | ||||
| 1.0×1.0×1.0m, | ||||
| 2.0×0.5×0.5m | ||||
| 2.0×1.0×0.5m | ||||
| 2.0×1.0×1.0m | ||||
| All the specification could be customized | ||||
Gabion Stiffener
BENEFITS
Multiple coating options gives superior corrosion resistance against harsh enviromental conditions
As it doesn't consume cement, it is a very sustainable alternative for compound wall.
Modular panles can be fixed together using spiral wire/Helical wires without use any tools which makes the installation easy and fast.
Engineered with high consistency gives the baskets a uniform look which adds to the artistic and beautification.
High Welded and tensile strength imparts stability to the structure arresting bending against external loads

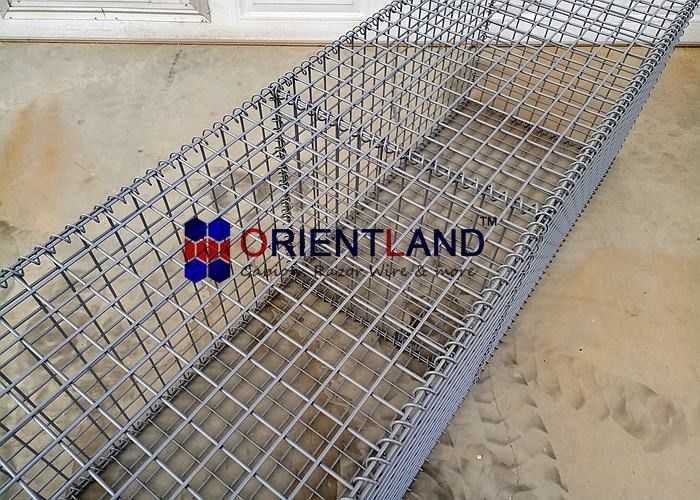

Gabion Picture showing:
Each includes 6 or 7 panels, spiral binders, and all stiffeners or brace wire required to complete the assembly. All components are shipped flat, easy and ready to install.
TYPICAL APPLICATIONS:
Gabion Gravity Walls
Gabion Retaining Wall
Gabion Column/Pillar
Garden Gabion Seat
Gabion Planter
