Product Details
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORRW012
Payment & Shipping Terms
Minimum Order Quantity: 2 tons
Price: Negotiable
Packaging Details: Plastic woven bag, pallet or nude packing
Delivery Time: 7-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8 tons per day
Core Wire: |
Hot Dipped Galvanized Steel Wire, Electric Galvanized Iron Wire |
Blade: |
Hot Dipped Rolled Plate |
Barbed Type: |
BTO-11, BTO-22. BTO-30 |
Coil Diameter: |
450mm, 600mm, 900mm |
Length: |
14-16m |
Number Of Loops: |
54-56loops |
Application: |
Militaty Use, Airport, Court, Garden Protection, Fence |
Sample: |
Free |
Core Wire: |
Hot Dipped Galvanized Steel Wire, Electric Galvanized Iron Wire |
Blade: |
Hot Dipped Rolled Plate |
Barbed Type: |
BTO-11, BTO-22. BTO-30 |
Coil Diameter: |
450mm, 600mm, 900mm |
Length: |
14-16m |
Number Of Loops: |
54-56loops |
Application: |
Militaty Use, Airport, Court, Garden Protection, Fence |
Sample: |
Free |

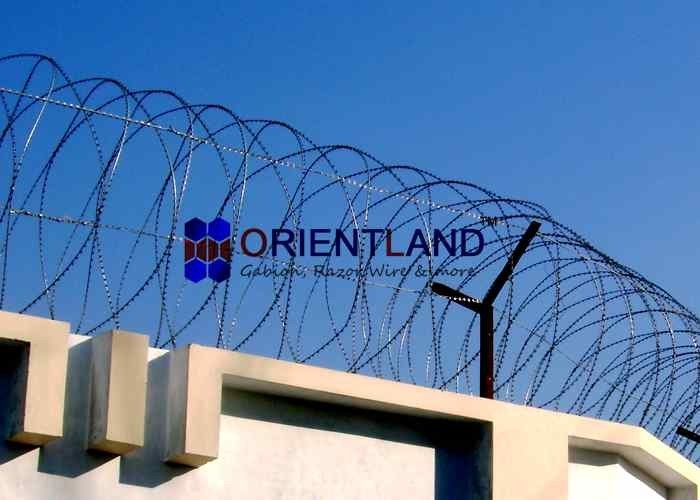

Concertina Razor Barbed Wire Razor Ribbon Wire Razor Barbed Wire Mesh
Barbed wire and razor wire are two well-known security installations used worldwide to protect boundaries whether they be for humans or for animals. Barbed and razor wire differ in a number of aspects which are enumerated below.
Razor Wire
Razor wire is commonly used in security applications. Similar to barbed wire in construction, it features sharp-edged blades made from steel tape.
Unlike barbed wire, razor wire is manufactured using a central strand of high tension wire, around which sharp barbs are taped and crimped by a machine. The wire is exceedingly difficult to cut using hand tools. While the barbs have a piercing and gripping action, reinforced steel makes it very hard to bend.
Specification of Concertina Razor Wire
| Coil Diameter | No. of Loops | Standard Length | No. of Clips | Barbed Type | Notes |
| 450mm | 56 | 8-9m | 3 | BTO-10, 22,30 | Concertina Type |
| 500mm | 56 | 9-10m | 3 | BTO-10, 22,30 | Concertina Type |
| 600mm | 56 | 10-11m | 3 | BTO-10, 22,30 | Concertina Type |
| 600mm | 56 | 8-10m | 5 | BTO-10, 22,30 | Concertina Type |
| 700mm | 56 | 10-12m | 5 | BTO-10, 22,30 | Concertina Type |
| 800mm | 56 | 11-13m | 5 | BTO-10, 22,30 | Concertina Type |
| 900mm | 56 | 12-14m | 5 | BTO-10, 22,30 | Concertina Type |
| 960mm | 56 | 13-15m | 5 | BTO-10, 22,30 | Concertina Type |
| 980mm | 56 | 14-16m | 5 | BTO-10, 22,30 | Concertina Type |
Packing of the Concertina Raozr Wire
Application:
Razor wire is used to top security fences. An individual attempting to get into or out of a secured area will have difficulties in getting through without adequate tools. On the other hand, barbed wire is usually used to restrain cattle and as inexpensive fencing.
Razor wire has been used by the military over the barbed wire in the recent past as the former is slightly lighter for the same effective coverage and occupies less space in storage. Compared to barbed wire, razor wire can be more injurious and hard to pass. Instances where cattle and people have toppled over barbed wire have been common. It is very difficult to get across razor wire without being seriously cut.
