Product Details
Place of Origin: ANPING, CHINA
Brand Name: ORIENTLAND
Certification: ISO,SGS
Model Number: ORWW010
Payment & Shipping Terms
Minimum Order Quantity: 30 pcs
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 20days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per week
Type: |
Woven Wire Mesh |
Material: |
65Mn High Carbon Steel Wire, Low Carbon Steel Wire, High Tensile Strength Spring Steel Wire |
Wire Diameter: |
1.3mm-13mm |
Usage: |
Chmical Induetry, Oil, Filtration |
Width: |
3ft, 1m , 4ft |
Length: |
1m, 3m, 5m Or As Required |
Aperture: |
3mm-100mm |
Application: |
Vibrating Screens, Screen Decks And Trommels |
Sample: |
Free |
Type: |
Woven Wire Mesh |
Material: |
65Mn High Carbon Steel Wire, Low Carbon Steel Wire, High Tensile Strength Spring Steel Wire |
Wire Diameter: |
1.3mm-13mm |
Usage: |
Chmical Induetry, Oil, Filtration |
Width: |
3ft, 1m , 4ft |
Length: |
1m, 3m, 5m Or As Required |
Aperture: |
3mm-100mm |
Application: |
Vibrating Screens, Screen Decks And Trommels |
Sample: |
Free |

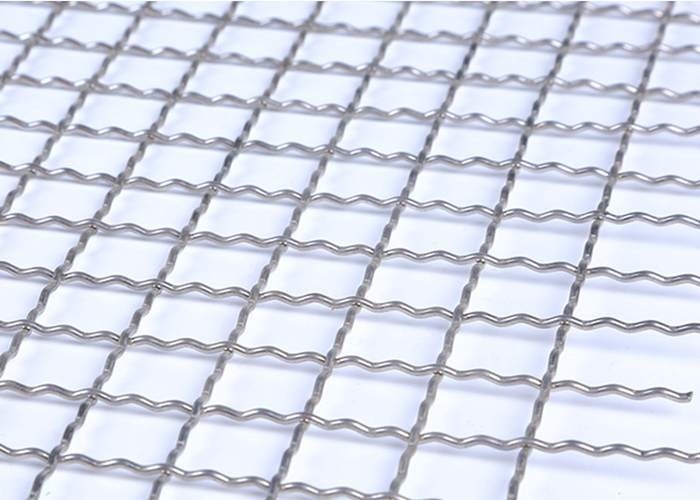

Mining Screen Mesh High Carbon Steel Crimped Woven Wire Mesh Vibrating Screen Mesh
1. Raw Material:
65Mn high carbon steel wire, low carbon steel, high tensile strength spring steel wire, stainless steel wire.
2. Manufacture Method
The wires are crimped before they are woven. The weave styles include, but not limited to, intermediate crimp weave in both W and F directions, lock crimp weave, flat top crimp weave, and crimp weave in both W and F directions and intermediate crimp weave in either W or F direction.
3. Specification
Wire diameter ranges from 1.37mm to 12.7mm, and aperture size 3mm to 100mm. The width and length of each mesh panel could be specified by the client.
| No. | Steel Grade | Chemical Composition (%) | ||
| C | Si | Mn | ||
| 1 | #45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | #50 | 0.47-0.55 | ||
| 3 | #55 | 0.52-0.60 | ||
| 4 | #60 | 0.57-0.65 | ||
| 5 | #65 | 0.62-0.70 | ||
| 6 | #70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| Steel grades #45, #50 and #55 are medium-carbon steel. Steel grades #60, #65, #70, 65Mn and 72A are high carbon steel. | ||||
4.Features
5. Uses
Quarry Screen Mesh is mainly used for primary filtration of mining, such as coal, iron ore, stones, etc. And also used in asphalt mixer equipment, mine vibrating screens, screen decks and trommels.
