Product Details
Place of Origin: ANPING, CHINA
Brand Name: ORIENTLAND
Certification: ISO,SGS
Model Number: ORWW014
Payment & Shipping Terms
Minimum Order Quantity: 30 rolls
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 rolls per week
Type: |
Woven Wire Mesh |
Material: |
65Mn High Carbon Steel Wire, Low Carbon Steel Wire, High Tensile Strength Wire, Stainless Steel Wire |
Wire Diameter: |
1.3mm-13mm |
Usage: |
Chmical Induetry, Oil, Filtration |
Width: |
3ft, 1m , 4ft |
Length: |
1m, 3m, 5m Or As Required |
Aperture: |
3mm-100mm |
Application: |
Vibrating Screens, Screen Decks And Trommels |
Sample: |
Free |
Type: |
Woven Wire Mesh |
Material: |
65Mn High Carbon Steel Wire, Low Carbon Steel Wire, High Tensile Strength Wire, Stainless Steel Wire |
Wire Diameter: |
1.3mm-13mm |
Usage: |
Chmical Induetry, Oil, Filtration |
Width: |
3ft, 1m , 4ft |
Length: |
1m, 3m, 5m Or As Required |
Aperture: |
3mm-100mm |
Application: |
Vibrating Screens, Screen Decks And Trommels |
Sample: |
Free |

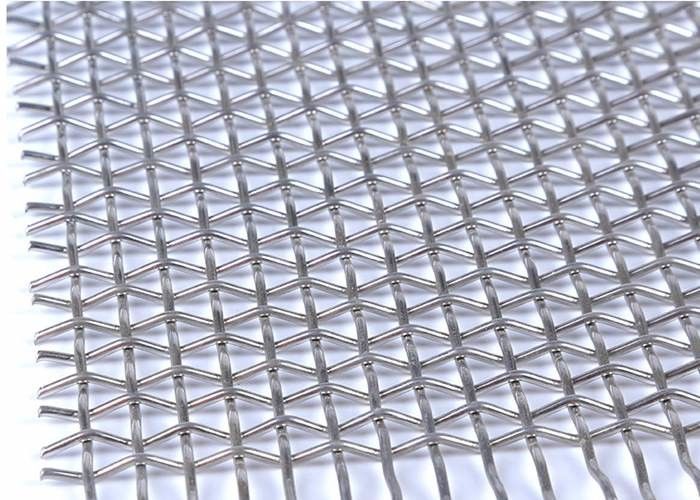

Sand Sieve Mesh Cereals Sifting Screen Crimped Wire Mesh Stainless Woven Wire Mesh
1. Raw Material:
Stainless steel wire, 65Mn high carbon steel wire, low carbon steel, high tensile strength spring steel wire.
2. Manufacture Method
The wires are crimped before they are woven. The weave styles include, but not limited to, intermediate crimp weave in both W and F directions, lock crimp weave, flat top crimp weave, and crimp weave in both W and F directions and intermediate crimp weave in either W or F direction.
3. Specification
Wire diameter ranges from 1.37mm to 12.7mm, and aperture size 3mm to 100mm. The width and length of each mesh panel could be specified by the client.
| No. | Steel Grade | Chemical Composition (%) | ||
| C | Si | Mn | ||
| 1 | #45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | #50 | 0.47-0.55 | ||
| 3 | #55 | 0.52-0.60 | ||
| 4 | #60 | 0.57-0.65 | ||
| 5 | #65 | 0.62-0.70 | ||
| 6 | #70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| Steel grades #45, #50 and #55 are medium-carbon steel. Steel grades #60, #65, #70, 65Mn and 72A are high carbon steel. | ||||
4.Features
5. Uses
Quarry Screen Mesh is mainly used for primary filtration of mining, such as coal, iron ore, stones, etc. And also used in asphalt mixer equipment, mine vibrating screens, screen decks and trommels.
