2.13m Galfan Wire Expeditionary Protective Defensive Barrier Units Mil 10

2.13m Galfan Wire Expeditionary Protective Barrier Units Mil 10

Products Description

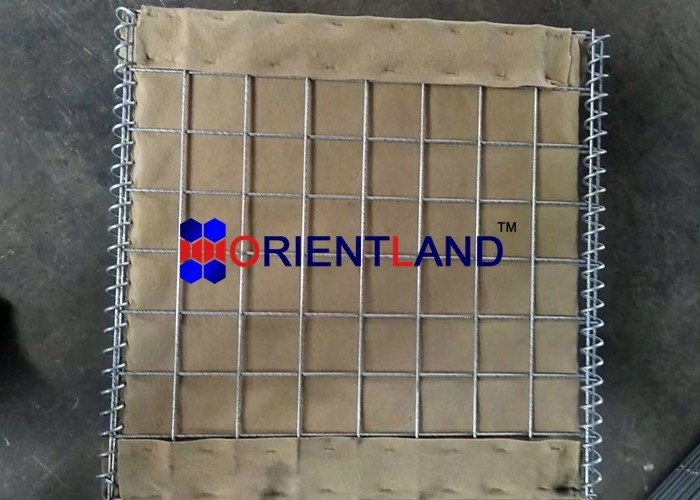

The Expeditionary Protective Barrier Units is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.

MIL10 Specification Table
Height	Width	Length	Cells	Wire dia.	Hole Size
2.13m	1.52m	30.5m	20(4×5)	5mm	75×75mm
Geotextile:300g, beige color, green color, white color

Advantages

• Secure & reliable

Once filled with soil, sand or gravel, Securest forms a solid and strong barrier with exceptional strength and structural integrity to protect personnel and equipment from enemyfire.

• Convenient usage

Securest bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needs of your projects. Almost any locally filling material can be used such as soil, sand, gravel, crushed rock and various other granular materials.

• Labor saving design

Securest can be collapsed and stacked on pallets for easy package, handling and transport, so that it efficiently saves labor cost.

• Quick & easy assembly

Securest provides the easiest deploy methods - just unfold it and fill it using minimal manpower or commonly available equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fill about 20 sandbags per hour. Our products do ten times the work.

Application

1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration

2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.

3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.

4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
