Product Details
Place of Origin: ANPING, CHINA
Brand Name: ORIENTLAND
Certification: ISO, SGS
Model Number: OREX010
Payment & Shipping Terms
Minimum Order Quantity: 100 sqm
Price: Negotiable
Packaging Details: Waterproof paper, Woven bag, Pallet
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sqm per day
Material: |
Low Carbon Steel |
Hole Shape: |
Diamond Hole, Square Hole, Hexagonal Hole |
Thickness: |
0.3-5mm, Customer's Requirement |
Short Way Of Mesh: |
2mm-50mm |
Long Way Of Mesh: |
4mm-100mm |
Surface Treatment: |
Hot Dipped Galvanized, PVC Powder Coated |
Application: |
Protecting Mesh, Filters, Screen, Barbecue Mesh |
Sample: |
Free |
Material: |
Low Carbon Steel |
Hole Shape: |
Diamond Hole, Square Hole, Hexagonal Hole |
Thickness: |
0.3-5mm, Customer's Requirement |
Short Way Of Mesh: |
2mm-50mm |
Long Way Of Mesh: |
4mm-100mm |
Surface Treatment: |
Hot Dipped Galvanized, PVC Powder Coated |
Application: |
Protecting Mesh, Filters, Screen, Barbecue Mesh |
Sample: |
Free |

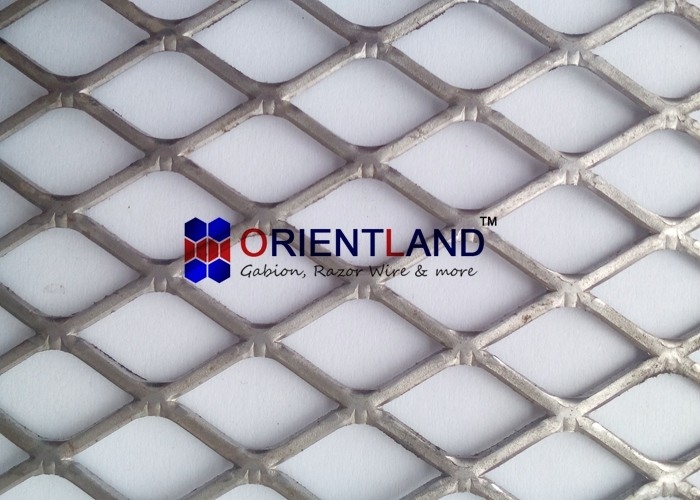

Small Hole Raised Expanded Metal Mesh Diamond Hole in rolls and panels
Product Description:
Expanded metal is a rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation. It is manufactured from solid sheets/coils of stainless steel, aluminum, carbon steel or other alloys that can be expanded. Conventional mesh is formed in a diamond pattern. It has other pattern of hexagonal, round, triangle, scale-like opening.
SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.
StrandExpanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.
| Specifications | |
| Material | Low carbon steel, stainless steel, Aluminum Alloy |
| Thickness | 0.5-8mm |
| Strand Width | 0.3-9mm |
| SWD | 2-56mm |
| LWD | 3-150mm |
| Panel Width | 4ft-8ft |
| Panel Length | 4ft-10ft |
| Opening Area | 45%-85% |
| Hole Shapes | Square, Diamond,Triangle, Hexagonal, Round,Scale |
| Surface treatment | Hot dipped Glavanized, Electric galvanized, PVC coated |
| Colors | Could be made by RAL colors |
| Packing | Iron or wooden pallet, wooden case |
Applications:
1.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors
2.Architectural: stairs, ceilings, walls, floors, shades, decorative,
3.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection
4.Security: screens, walls, doors, ceilings, guards
5.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates
