Light Duty Raised And Flat Expanded Metal Mesh , Construction Metal Mesh Rolls

Product Details

Place of Origin: ANPING, CHINA

Brand Name: ORIENTLAND

Certification: ISO, SGS

Model Number: OREX011

Payment & Shipping Terms

Minimum Order Quantity: 100 sqm

Price: Negotiable

Packaging Details: Waterproof paper, Woven bag, Pallet

Delivery Time: 15days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000sqm per day

Get Best Price
Highlight:

light duty metal mesh rolls

,

light duty expanded metal mesh

,

2mm metal mesh rolls

Material:
Low Carbon Steel
Hole Shape:
Diamond Hole, Square Hole, Hexagonal Hole
Thickness:
0.3-5mm, Customer's Requirement
Short Way Of Mesh:
2mm-50mm
Long Way Of Mesh:
4mm-100mm
Surface Treatment:
Hot Dipped Galvanized, PVC Powder Coated
Application:
Protecting Mesh, Filters, Screen, Barbecue Mesh
Sample:
Free
Material:
Low Carbon Steel
Hole Shape:
Diamond Hole, Square Hole, Hexagonal Hole
Thickness:
0.3-5mm, Customer's Requirement
Short Way Of Mesh:
2mm-50mm
Long Way Of Mesh:
4mm-100mm
Surface Treatment:
Hot Dipped Galvanized, PVC Powder Coated
Application:
Protecting Mesh, Filters, Screen, Barbecue Mesh
Sample:
Free
Light Duty Raised And Flat Expanded Metal Mesh , Construction Metal Mesh Rolls

Light-Duty Raised and Flat Expanded Metal Mesh Rolls Construction Metal Mesh


Product Description:

Expanded metal is a type of sheet metal which has been cut and stretched to form a regular pattern (often diamond-shaped) of metal mesh-like material. It is commonly used for fences and grates, and as metallic lath to support plaster or stucco.



Expanded metal is stronger than an equivalent weight of wire mesh such as chicken wire, because the material is flattened, allowing the metal to stay in one piece. The other benefit to expanded metal is that the metal is never completely cut and reconnected, allowing the material to retain its strength.

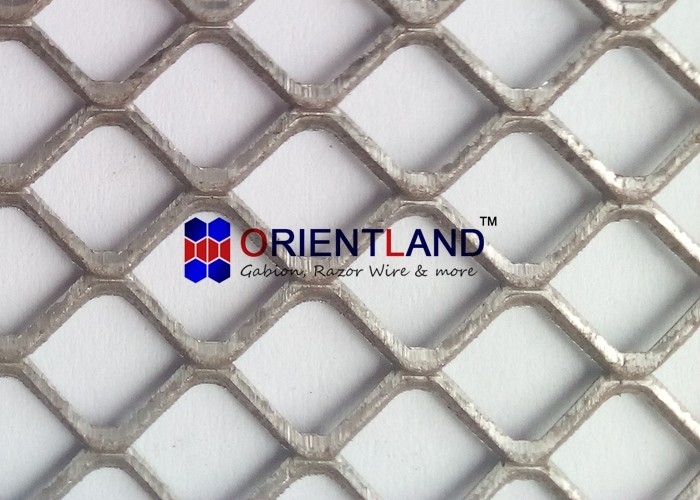

Light Duty Raised And Flat Expanded Metal Mesh , Construction Metal Mesh Rolls 0

Light Duty Raised And Flat Expanded Metal Mesh , Construction Metal Mesh Rolls 1

SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.


StrandExpanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.



Specifications
Material Low carbon steel, stainless steel, Aluminum Alloy
Thickness 0.5-8mm
Strand Width 0.3-9mm
SWD 2-56mm
LWD 3-150mm
Panel Width 4ft-8ft
Panel Length 4ft-10ft
Opening Area 45%-85%
Hole Shapes Square, Diamond,Triangle, Hexagonal, Round,Scale
Surface treatment Hot dipped Glavanized, Electric galvanized, PVC coated
Colors Could be made by RAL colors
Packing Iron or wooden pallet, wooden case



Applications:

Expanded metal is frequently used to make fences, walkways, and grates, as the material is very durable and strong, unlike lighter and less expensive wire mesh.



The many small openings in the material allow flow through of air, water, and light, while still providing a mechanical barrier to larger objects. Another advantage to using expanded metal as opposed to plain sheet metal is that the exposed edges of the expanded metal provide more traction, which has led to its use in catwalks or drainage covers.



Large quantities of expanded metal are used by the construction industry as metal lath to support materials such as plaster, stucco, or adobe in walls and other structures.

Light Duty Raised And Flat Expanded Metal Mesh , Construction Metal Mesh Rolls 2

Safety:

Freshly-cut expanded metal has a large number of exposed sharp edges, requiring caution and protective clothing, such as leather gloves and aprons to prevent skin abrasions and cuts.
