Product Details
Place of Origin: ANPING, CHINA
Brand Name: ORIENTLAND
Certification: ISO, SGS
Model Number: OREX013
Payment & Shipping Terms
Minimum Order Quantity: 100 sqm
Price: Negotiable
Packaging Details: Waterproof paper, Woven bag, Pallet
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sqm per day
Material: |
Low Carbon Steel Plate, Galvanized Plate |
Hole Shape: |
Diamond Hole, Square Hole, Hexagonal Hole |
Thickness: |
0.3-5mm, Customer's Requirement |
Short Way Of Mesh: |
2mm-50mm |
Long Way Of Mesh: |
4mm-100mm |
Surface Treatment: |
Hot Dipped Galvanized, PVC Powder Coated |
Application: |
Protecting Mesh, Filters, Screen, Barbecue Mesh |
Sample: |
Free |
Material: |
Low Carbon Steel Plate, Galvanized Plate |
Hole Shape: |
Diamond Hole, Square Hole, Hexagonal Hole |
Thickness: |
0.3-5mm, Customer's Requirement |
Short Way Of Mesh: |
2mm-50mm |
Long Way Of Mesh: |
4mm-100mm |
Surface Treatment: |
Hot Dipped Galvanized, PVC Powder Coated |
Application: |
Protecting Mesh, Filters, Screen, Barbecue Mesh |
Sample: |
Free |

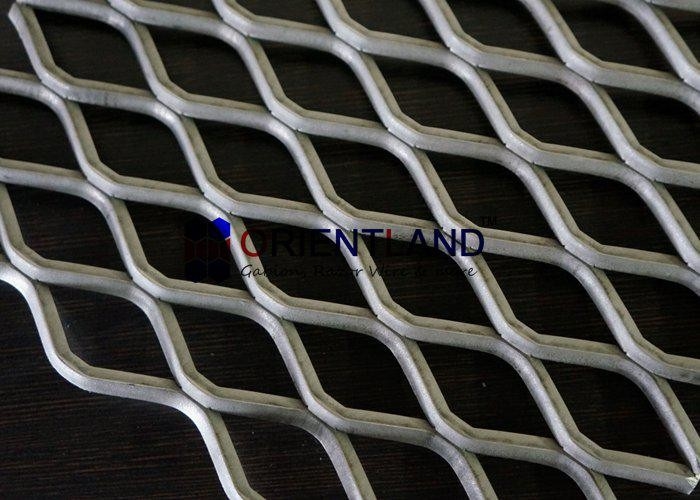

Galvanized Expanded Metal Heavy Duty Expanded Metal Mesh Carbon Steel Expanded Metal
Product Description:
Expanded metal is produced by shearing and stretching a metal plate, sheet or coil in a metal press. The stretching leaves diamond-shaped openings surrounded by interlinked bars of metal. These openings are of uniform size and regularity. The mesh is either cut into sheets or wound into coils.
SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.
StrandExpanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.
| Specifications | |
| Material | Low carbon steel, stainless steel, Aluminum Alloy |
| Thickness | 0.5-8mm |
| Strand Width | 0.3-9mm |
| SWD | 2-56mm |
| LWD | 3-150mm |
| Panel Width | 4ft-8ft |
| Panel Length | 4ft-10ft |
| Opening Area | 45%-85% |
| Hole Shapes | Square, Diamond,Triangle, Hexagonal, Round,Scale |
| Surface treatment | Hot dipped Glavanized, Electric galvanized, PVC coated |
| Colors | Could be made by RAL colors |
| Packing | Iron or wooden pallet, wooden case |
Features and benefits of expanded metal mesh:
Applications:
Expanded metal is frequently used to make fences, walkways, and grates, as the material is very durable and strong, unlike lighter and less expensive wire mesh.
Safety:
Freshly-cut expanded metal has a large number of exposed sharp edges, requiring caution and protective clothing, such as leather gloves and aprons to prevent skin abrasions and cuts.
