Product Details
Place of Origin: Anping, China
Brand Name: JQ, Orientland
Certification: ISO9001:2015,SGS
Model Number: JQDB03
Payment & Shipping Terms
Minimum Order Quantity: 50Units
Price: USD9.9-20.9/Unit
Packaging Details: Wooden Pallet, Iron Pallet or nude packing
Delivery Time: 10 to 15 days
Supply Ability: 3000 Units per Month
Size: |
1.0mx1.0mx10m |
Mesh Diameter: |
4.0 Mm |
Series: |
95% Zinc + 5% Aluminium(275g/m2) |
Mesh Size: |
76.2X76.2mm |
Spring Wire Diameter: |
4mm |
Geotextile Density: |
250g/m2 |
Surface Treatment: |
Hot Dipped Galvanized Before Welding |
Advantage: |
Easy Assembled |
Main Usage: |
Camp Bastion |
Type: |
Protective Equipment |
Service Life: |
15-20 Years |
Size: |
1.0mx1.0mx10m |
Mesh Diameter: |
4.0 Mm |
Series: |
95% Zinc + 5% Aluminium(275g/m2) |
Mesh Size: |
76.2X76.2mm |
Spring Wire Diameter: |
4mm |
Geotextile Density: |
250g/m2 |
Surface Treatment: |
Hot Dipped Galvanized Before Welding |
Advantage: |
Easy Assembled |
Main Usage: |
Camp Bastion |
Type: |
Protective Equipment |
Service Life: |
15-20 Years |
MIL 3 1.0mx1.0mx10m Zinc-Aluminum Alloy Hesco Bastion Barrier
Products introduction
The Bastion barriers are strong structures which are composed of collapsible wire mesh container and non-woven polypropylene geotextile. According to different use environments, the defensive barriers can be made into standard and recoverable types for your choice. From a simple perimeter wall to a complex base infrastructure, our Welded Mesh Barrier products provide rapid protection to personnel, equipment and critical assets in any terrain.
The defensive barriers have been used around the world to create barriers for perimeter protection, construct temporary accommodation, and provide high level security control.
Specifications
| Material: | Hot-dipped galvanized steel wire or zinc-aluminum alloy steel wires. |
| Wire Diameter | 4 mm or 5 mm. |
| Mesh Size | 50 × 50 mm, 75 × 75 mm, 76.2 × 76.2 mm, 50 × 100 mm, 100 × 100 mm, etc |
| Geotextile | 320g, 400g heavy duty non-woven polypropylene |
| Geotextile color | White, beige, Military Green and other customized colors. |
|
Model
|
Height (M) | Width(M) | Length(M) | No. of cells |
| MIL1 | 1.37 | 1.06 | 10 | 5+4=9cells |
| MIL2 | 0.61 | 0.61 | 1.21 | 2cells |

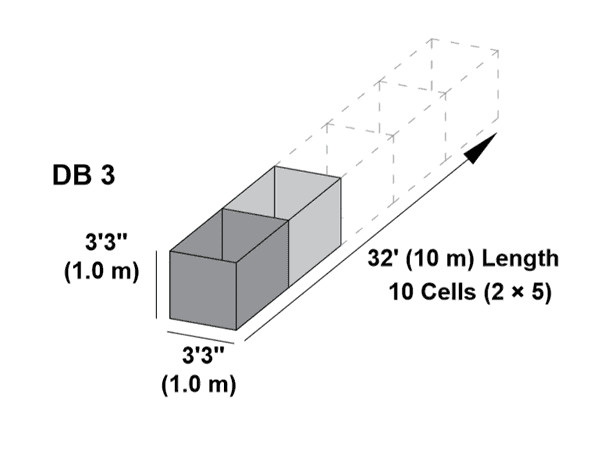

| MIL3 | 1.0 | 1.0 | 10 | 5+5=10cells |
| MIL4 | 1.0 | 1.5 | 10 | 5+5=10cells |
| MIL5 | 0.61 | 0.61 | 3.05 | 5cells |
| MIL6 | 1.68 | 0.61 | 3.05 | 5cells |
| MIL7 | 2.21 | 2.13 | 27.74 | 5+4+4=13cells |
| MIL8 | 1.37 | 1.22 | 10 | 4+5=9cells |
| MIL9 | 1.0 | 0.76 | 9.146 | 6+6=13cells |
| MIL10 | 2.13 | 1.52 | 30.5 | 5+5+5+5=20cells |
| MIL1.9 | 2.74 | 1.06 | 3.3 | 6cells |
| EPW1 | 2.1 | 1.06 | 33 | ...... |
Barrier Installation
The defensive barriers are engineered to provide a rapidly deployed high-level security fence for the protection of critical infrastructure and assets.
Combining the central concept of the Concertainer system, these fences are ground-mounted and proven to withstand vehicle borne attacks.
Each model is ground mounted, can be built on undulating or sloping ground and available in heights up to 5m (16in), creating a formidable barrier.
Product Features
MIL denfensive barrier applications:
Video
