Product Details
Place of Origin: Anping, China
Brand Name: JQ, Orientland
Certification: ISO9001:2015,SGS
Model Number: JQEM01
Payment & Shipping Terms
Minimum Order Quantity: 50rolls
Price: USD6.9-9.9/Unit
Packaging Details: Waterproof paper, plastic film, cartons
Delivery Time: 7 to 10 days
Payment Terms: T/T, L/C
Supply Ability: 2000rolls per day
Type: |
Expanded Metal Mesh |
Material: |
Galvanized Steel Sheet |
Hole Shape: |
Diamond |
Thickness: |
0.5mm |
Hole Size: |
10x5mm |
Width: |
3ft |
Length: |
100ft |
Packing: |
Waterproof Paper |
Surface Treatment: |
GI Or Electric Galvanized |
Application: |
Construction Wire Mesh, Building Plastering |
Type: |
Expanded Metal Mesh |
Material: |
Galvanized Steel Sheet |
Hole Shape: |
Diamond |
Thickness: |
0.5mm |
Hole Size: |
10x5mm |
Width: |
3ft |
Length: |
100ft |
Packing: |
Waterproof Paper |
Surface Treatment: |
GI Or Electric Galvanized |
Application: |
Construction Wire Mesh, Building Plastering |

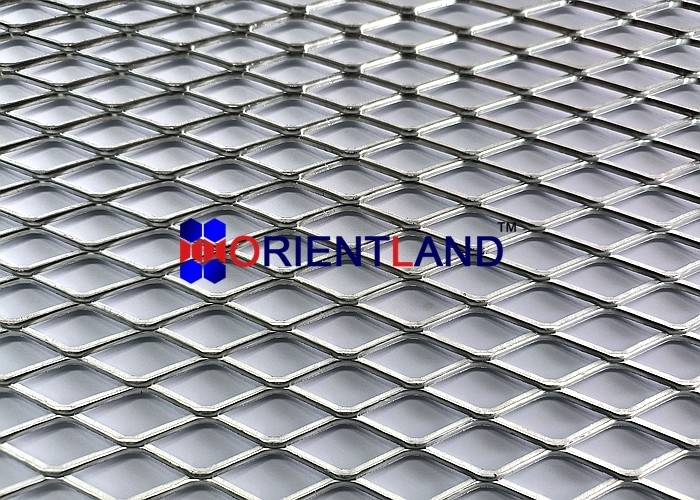

0.5mm Thickness Galvanized Expanded Metal Mesh 10 X 5mm Openings
Products Introduction:
Expanded metal is made from sheets of solid metal that are uniformly slit and stretched to create diamond-shape opens. As expanded metal is made, each row of diamond-shaped openings is offset from the next. This product is called standard expanded metal. The sheet can be rolled to produce flattened expanded metal. The light weight property and open area percentages of expanded metal allow it to be easily formed for a variety of energy saving applications, such as light diggers, screens, grilles and filters. Expanded metal is also manufactured in heavy gauges for application such as walkways, ramps and catwalks of all types.
SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
| Thickness(mm) | SWD(mm) | LWD(mm) | Strand(mm) |
| 0.5 | 2.5 | 4.5 | 0.5 |
| 0.5 | 10 | 25 | 0.5 |
| 0.6 | 10 | 25 | 1 |
| 0.8 | 10 | 25 | 1 |
| 1 | 10 | 25 | 1.1 |
| 1 | 15 | 40 | 1.5 |
| 1.2 | 10 | 25 | 1.1 |
| 1.2 | 15 | 40 | 1.5 |
| 1.5 | 15 | 40 | 1.5 |
| 1.5 | 23 | 60 | 2.6 |
| 2 | 18 | 50 | 2.1 |
| 2 | 22 | 60 | 2.6 |
| 3 | 40 | 80 | 3.8 |
| 4 | 50 | 100 | 4 |
| 4.5 | 50 | 100 | 5 |
| 5 | 50 | 100 | 5 |
| 6 | 50 | 100 | 6 |
| 8 | 50 | 100 | 8 |
Features and benefits of expanded metal mesh:
Application,
Widely used in large venues, both inside and outside decorative, aerospace, petroleum, chemical industry, metallurgy, medicine, paper making, filtration, breeding, packing, mechanical facilities, protection, handicraft manufacturing, high-grade speaker grille, children’s seat, baskets, basket, highway protection, and heavy machinery, boilers, oil mines, locomotives, tonner steamship, work platform, staircase, walkway. Also can be used for construction, highway and bridge as reinforced use.
